首頁歐美晶振Jauch Crystal|O 24.0-JTS75HCV-J-K-3.3-1510-1015-LF

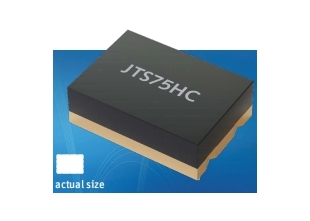

Jauch Crystal|O 24.0-JTS75HCV-J-K-3.3-1510-1015-LF

產品型號：49172012
晶振頻率：24MHz
晶振尺寸：7.0*5.0*1.5mm
產品應用： 歐美進口晶振,Jauch晶振,JTS75HCV有源晶振,O 24.0-JTS75HCV-J-K-3.3-1510-1015-LF晶振,7050晶振,SMD晶體,壓控溫補晶振,石英晶體振蕩器,頻率24MHz,電壓3.3V,頻率穩定性0.05ppm,工作溫度-40~85°C,低相位噪聲晶振,高品質...

Jauch Crystal|O 24.0-JTS75HCV-J-K-3.3-1510-1015-LF,歐美進口晶振,Jauch晶振,JTS75HCV有源晶振,O 24.0-JTS75HCV-J-K-3.3-1510-1015-LF晶振,7050晶振,SMD晶體,壓控溫補晶振,石英晶體振蕩器,頻率24MHz,電壓3.3V,頻率穩定性0.05ppm,工作溫度-40~85°C,低相位噪聲晶振,高品質晶振,低老化晶振,移動通信設備晶振,測試與測量儀器晶振,健身設備晶振,掃描儀晶振.

Jauch Crystal|O 24.0-JTS75HCV-J-K-3.3-1510-1015-LF特點：
-溫度補償晶體振蕩器，7.0 x 5.0 mm
-低抖動地層3兼容TCXO / VCTCXO
-溫度范圍-40℃~ +105℃
-頻率穩定性可達±50 ppb
-要求定制選項

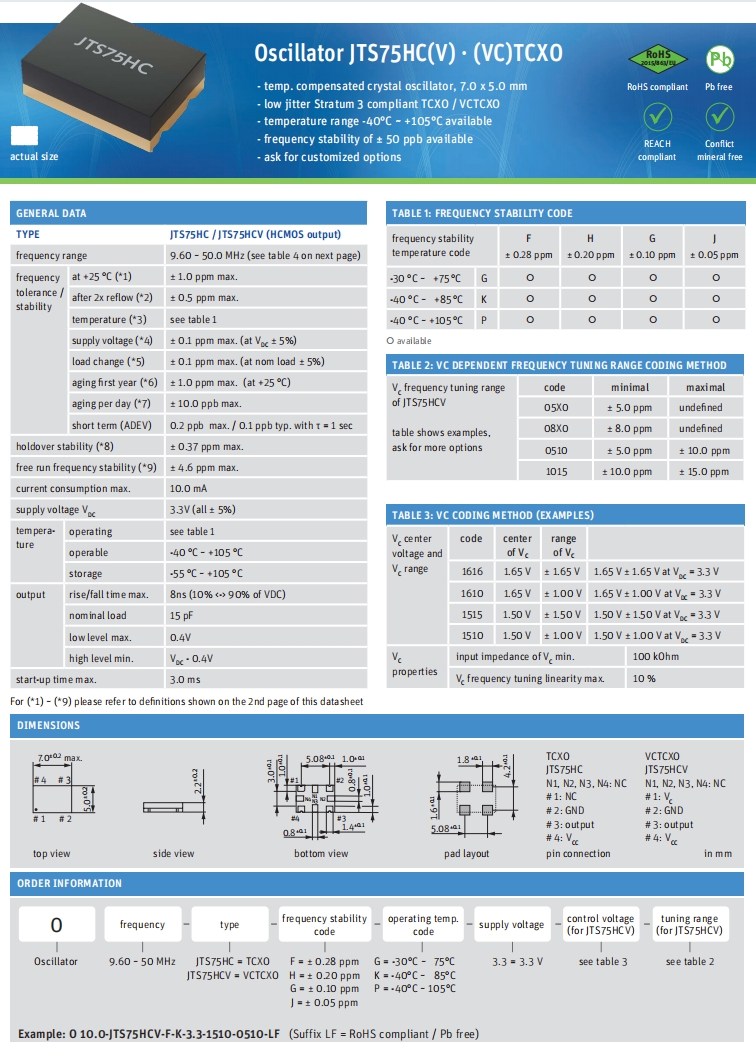

Jauch Crystal|O 24.0-JTS75HCV-J-K-3.3-1510-1015-LF規格表

TYPE		JTS75HC/JTS75HCV
frequency range		24MHz
frequency stability	at +25°℃	± 1.0 ppm max.
	after 2x reflow (*2)	± 0.5 ppm max.
	temperature (*3)	±0.05ppm
	supply voltage (*4)	± 0.1 ppm max. (at VDC ± 5%)
	load change (*5)	± 0.1 ppm max. (at nom load ± 5%)
	aging first year (*6)	± 1.0 ppm max. (at +25 °C)
	aging per day (*7)	± 10.0 ppb max.
	short term (ADEV)	0.2 ppb max. / 0.1 ppb typ. with τ = 1 sec
holdover stability (*8)		± 0.37 ppm max.
free run frequency stability (*9)		± 4.6 ppm max.
current consumption max.		10 mA max.
supply voltage VDC		3.3 V (±5%)
temperature	operating	-40℃-+85℃
	operable	-40℃-+105℃
	storage	-55℃-+105℃
output	rise/fall time max.	8ns (10% <-> 90% of VDC)
	nominal load	15 pF
	low level max.	0.4V
	high level min.	VDC - 0.4V
start-up time max.		3.0ms

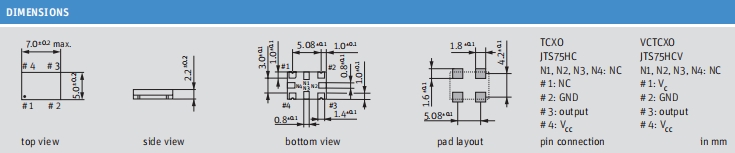

Jauch Crystal|O 24.0-JTS75HCV-J-K-3.3-1510-1015-LF尺寸圖

Jauch晶振原廠編碼	制造商	型號	頻率	頻率容差	負載電容	工作溫度
Q 0.032768-JTX410-7-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	8pF	-40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	10pF	-40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	8pF	-40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	10pF	-40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	8pF	-40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	10pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	-20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	-20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	26MHz	±10ppm	12pF	-20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	26MHz	±10ppm	8pF	-20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	26MHz	±10ppm	9pF	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	-20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	27.12MHz	±10ppm	10pF	-20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	27.12MHz	±10ppm	12pF	-20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	27.12MHz	±10ppm	8pF	-20°C ~ 70°C
